Encon

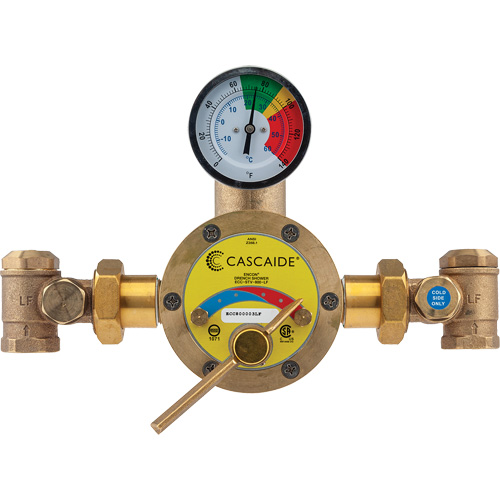

Mixing Valve for Exposed Assembly of Drench or Combination Emergency Shower, 56 GPM

Model: SGX711

Mfr. Model No.: ECC-STV-800-LF

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

0 In Stock - Call For Stock Location

Ships in 3-4 weeks

Shipping times are based on information available at the time of order and are subject to change.

  • Gallons Per Minute (GPM): 56 GPM
  • Minimum Gallons Per Minute: 3 GPM
  • Maximum Supply Temperature: 180°F (82°C)
  • Maximum Supply Pressure: 125 PSI (8.6 Bar)
  • Locking temperature regulator to prevent accidental movement set for 85°F (29°C)
  • Mixing valve will close down on failure of cold water supply
  • Mixing valve with special internal cold water bypass capable of 20 GPM (76 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply
  • Adjustable high temperature limit stop * set for 90°F (32°C)
  • Full 1" top or bottom inlets and 1-1/4" top outlet
  • Integral wall support
  • Dial thermometer (range 0 to 140°F, -10 to 60°C)
  • Rough bronze finish
  • Union angle checkstops on inlets
  • A method to assist in achieving compliance to ANSI Z358.1
