Hein-Werner

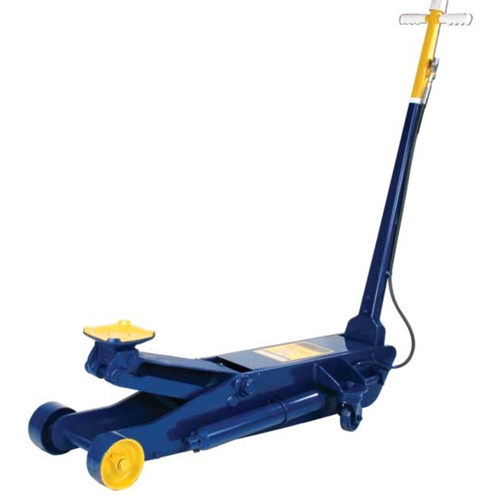

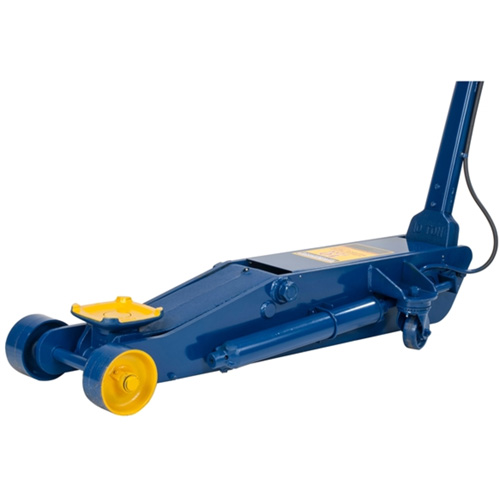

Long Chassis Service Jack, 10 Ton(s) Capacity, 6-3/4" Lowered, 25-1/2" Raised, Air Hydraulic

Model: FLU923

Mfr. No.: HW93662

  • Long Chassis Service Jack, 10 Ton(s) Capacity, 6-3/4" Lowered, 25-1/2" Raised, Air Hydraulic Fastek

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$11,879.01

0 In Stock - Call For Stock Location

Ships in 2-3 weeks

Shipping times are based on information available at the time of order and are subject to change.

Lifting Capacity

10 Ton(s)

Lowered Height

6-3/4"

Raised Height

25-1/2"

Operation Type

Air Hydraulic

Chassis Length

53-1/2"

Wheel To Wheel Width

20-1/2"

Gross Weight

435 lbs.

Country Of Origin

United States

  • Lifting trucks, trailers, and buses by the axle, differential, or frame
  • Dual piston action provides speed to contact and power to lift
  • Long chassis for hard to reach points
  • Handle adjusts to three pumping positions
  • T handle with release knob for exact positioning of load
  • Sealed hydraulic unit keeps out grit, grime and moisture
  • Large full swivel saddle and ball bearing caster make positioning easy
  • Cast lift arm for heavy loads
  • Operates manually or with air
  • Patented “Speed Pak™” reduces handle pumping
  • Uses standard shop air 110-175 PSI pressure (140-175 PSI for rated load)
  • Made in U.S.A.
