King Canada

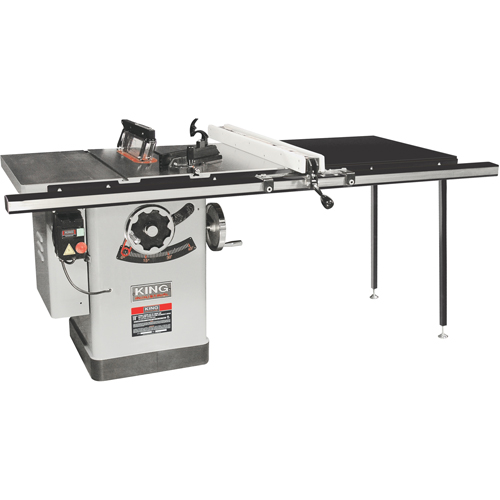

Extreme Cabinet Saws with Riving Knife, 220 V, 12.8 A

Model: TS236

Mfr. No.: KC-26FXT/I50/5052

  • Extreme Cabinet Saws with Riving Knife, 220 V, 12.8 A Fastek

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$4,737.00 / Each

0 In Stock - Call For Stock Location

Ships May 2026

Shipping times are based on information available at the time of order and are subject to change.

Overall Width

27"

Overall Length

74-3/4"

Voltage

220 V

Amps

12.8 A

Max Rip

50"

Blade Diameter

10"

Blade Tilts

Left

Depth Of Cut At 45°

2 3/16"

Depth Of Cut At 90°

3 1/8"

Table Size With Extensions

74 3/4" x 27"

Diameter Of Arbor

5/8"

Arbor Speed

4300 RPM

Motor

12.8 A, 1 phase, 60 Hz

Weight

515 lbs.


  • Powerful 3 HP Leeson motor
  • Heavy-duty cast-iron table and extension tables are double ground for accuracy and finish
  • Table has "T" slots for miter gauge and beveled front edge
  • Large 8" diameter chromed handwheels with center locking knobs
  • Magnetic safety switch
  • Comes with riving knife, industrial Tru- Rip T-square rip fence system for precision cuts, laminated melamine extension table, two sturdy adjustable supporting legs for extension table (TS236 only), cast iron miter gauge with adjustable aluminum fence and flip stop, standard and dado insert
