Lincoln Electric

Elevate™ SLi Battery Powered Welder

Model: TTV837

Mfr. No.: K4706-1

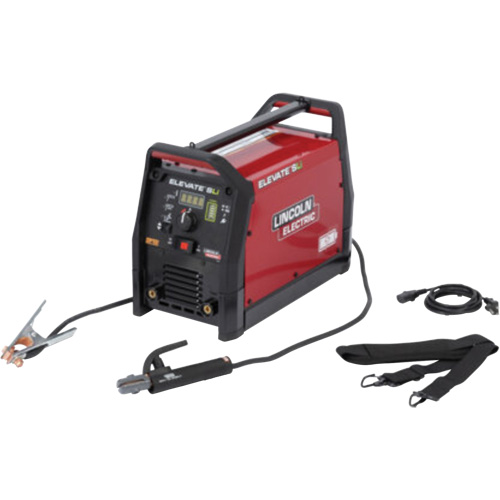

  • Elevate SLi Battery Powered Welder Fastek

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$7,131.96 / Each

0 In Stock - Call For Stock Location

Ships in 11-14 days

Shipping times are based on information available at the time of order and are subject to change.

Voltage Input Power

120 V

Phase Input Power

1 Ph

Hertz Input Power

60 Hz

Dimensions

14" H x 9.1" W x 18.3" D (356 mm x 231 mm x 465 mm)

Weight

33 lbs. (15 kg)

Machines Processes

Stick (SMAW), TIG (GTAW)

Open Circuit Voltage

Average: 55V, Peak: 68V

Output Range

Stick: 10-145A, TIG: 4-145A

Polarity

DC

Battery Type

Lithium Iron Phosphate (LiFePO4) battery

Watt Hours

576 Wh

Charge Time

60 minutes

Country Of Origin

United States

  • Provides a powerful 145A output for highly efficient welding
  • Ensures easy starts, a smooth arc, low spatter, and optimal bead appearance
  • Supports a wide range of welding rods, including 6010 and 7018 up to 5/32", and features Touch Start TIG functionality
  • Hot Start and Arc Force can be adjusted to improve electrode starting and control penetration profile
  • Designed for easy transportation, weighing only 33 lbs and featuring an adjustable shoulder strap for added convenience
  • Easily maneuverable on job sites and does not require extra-long weld cables or a generator, making it an excellent option for remote work locations
  • Employs Lithium Iron Phosphate technology to offer extended battery life, enabling the welding of up to electrodes on a single charge
  • The integrated internal charging system can charge in 60 minutes using 120V input power, eliminating the need for an external charger
  • Built to withstand challenging welding environments with an IP23S rating and fan as-needed circuitry, ensuring long-lasting performance
  • Backed by a 3-year warranty from Lincoln Electric, providing peace of mind and reliable support for your investment
