Lincoln Electric

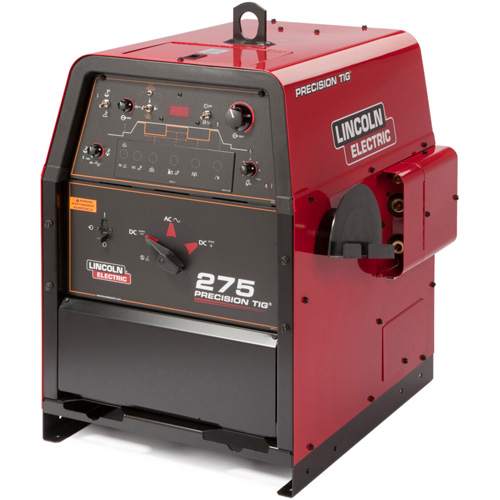

Precision TIG® 275 TIG Welder Ready-Pak®

Model: TTV791

Mfr. No.: CK1825-2P

  • Precision TIG® 275 TIG Welder Ready-Pak® Fastek

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Discontinued

For Use With

  • Construction, Automotive, Brewery, Distillery, General Fabrication, Maintenance & Repair, Marine Applications, Marine Fabrication & Repair, Pharmaceutical Equipment, Repair Welding, Shipbuilding

Includes

  • (1) Precision TIG 275 Welder, (1) K1828-1 Under-Cooler Cart Water Cooler, (1) K870 Foot Amptrol™ with 25 ft (7.6 m) Cable Assembly, (1) 3100211 Harris Gas Regulator/Flowmeter and 10 ft Hose Kit, (1) K1784-4 PTW-20 250A Water Cooled TIG Torch with 25 ft Cable, (1) K918-2 Zippered Torch Cover with 25 ft Cable Assembly, (1) KP510 Parts Kit for PTW-20 Series Torches, (2) S19558-4 Water Hoses, (1) K2150-1 2/0 Work Cable and Clamp 15 ft, (1) S20403-4 Adapter for PTA-9 or -17 Torch (3/8 in)

Manufacturer's Warranty

  • 3 Years

Voltage Input Power

208 V/230 V/460 V

Phase Input Power

1 Ph

Hertz Input Power

60 Hz

Dimensions (H X W X D)

49.7" x 28" x 41" (1262 mm x 711 mm x 1041 mm)

Weight

683 lbs. (309.809 kg)

Max. Rating

340 A

Output Range

2-340A Max OCV: 75V

Rated Output

275A/40%, 225A/60%

  • AC Auto-Balance® automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum
  • Adjust the AC Balance® to increase or decrease cleaning action or penetration on aluminum
  • Delivers the widest output range in its class with an amperage range of 2 to 340 amps
  • Upgrade with the optional Advanced Pulse Control panel to enable better control over heat input, resulting in less warping and distortion on thin metals
  • The Precision TIG 275 features the patented Micro-Start™ II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills
