NORCO Lifting

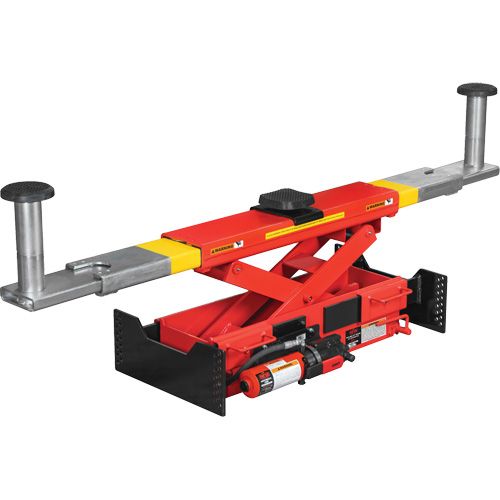

Air/Hydraulic Pump Operated Electric Vehicle Rolling Lift Bridge

Model: FLV859

Mfr. No.: 79345

  • Air/Hydraulic Pump Operated Electric Vehicle Rolling Lift Bridge Fastek

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$7,245.81 / Each

0 In Stock - Call For Stock Location

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

Includes

  • (2) 3-1/2” Adapters
  • (2) 5” Adapters
  • (2) Padded Saddles with Extension Screws

Capacity

3 Ton(s)

Lifting Range

32 - 46.5"

Overall Height

9-9/16"

Overall Width

21-1/2"

Overall Length

35-3/4"

Stroke Length

9"

Width Arms Retracted

36-11/16"

Width Arms Extended

71-5/8"

Country Of Origin

China


  • Used in quick lube pit applications or in conjunction with above ground lifts
  • It has lift arms that are wider than our other bridges to meet the needs of wide electric vehicles
  • This bridge straddles the lift rails and raises the vehicle’s tires off the rails for wheel alignment, brake, tire and suspension work
  • Push button air/hydraulic pump provides safe, quick lifting up to 9” which allows for a maximum lift height of 19-7/8" when using both adapters and extension screw extended
  • The lifting pads safely support the vehicle on the bridge and the adjustable lift arms span up to 71-5/8”
  • Universal mounting brackets adjust to a lift rail range of 32" to 46-1/2”
  • Flat-end and hook-end adapter brackets are equipped with spring-loaded roller bearings for smooth maneuverability of bridge on lift rails - brackets are sold separately
  • Mechanical stop prevents accidental lowering of bridge
  • Lowering is accomplished with one hand on the release lever and the other hand releasing the mechanical stop
  • Equipped with rubber faced saddles for differential lifting
