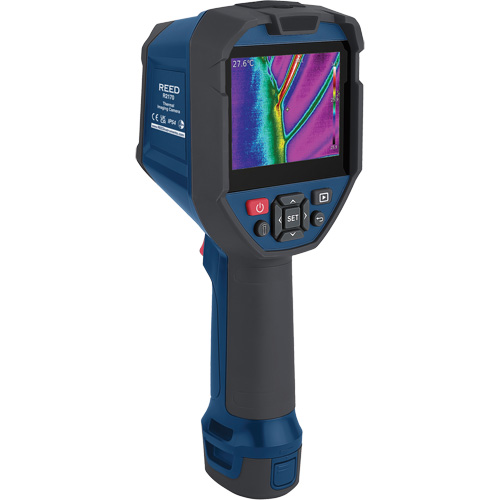

R2170 Thermal Imaging Camera, 640 x 480 pixels, 65 mK

Model: IC923

Mfr. No.: R2170

  • R2170 Thermal Imaging Camera, 640 x 480 pixels, 65 mK Fastek

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,795.00 / Each

0 In Stock - Call For Stock Location

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Display Size

3.5"

Display Type

Built-in

Resolution

640 x 480 pixels

Thermal Sensitivity

65 mK

Field Of View

56 x 42°

Focal Length

4 mm

Image Capture Frequency

9 Hz

Temperature Range

-40 to 752°F (-40 to 400°C)

Accuracy

±3.6°F (2°C) or ±2%

Spectral Range

8 to 14 µm

Battery Life

Approx. 3.5 hours

Charge Time

Approx. 4 hours

Standard(s) Met

CE, UKCA, IP54, 6.6' (2 m) Drop Test

  • Features a 320 x 240 (76,800 pixels) infrared sensor that can detect temperatures between -40 and 752°F (-40 and 400°C)
  • The R2170 has the ability to display hot and cold spot temperatures on a 3.5" color LCD and allows a user to choose from 7 different color palettes
  • The included software allows a user to view and analyze data, and generate reports or projects in real-time on a PC
  • The included battery packs have been designed to be easily changed in the field, allowing for continuous work
  • Built-in dual LED flashlight
  • Intuitive on-screen measurement tools
  • 4 image modes: thermal, visual image, picture-in-picture, fusion (thermal blending)
  • High and Low temperature spot and alarm indicators
  • Tripod mountable for continuous long-term monitoring
  • View, analyze stored data and generate reports or project in real-time
  • Low battery indication and auto shut off
  • Rechargeable Li-ion battery
  • 4x digital zoom
