Reed Instruments

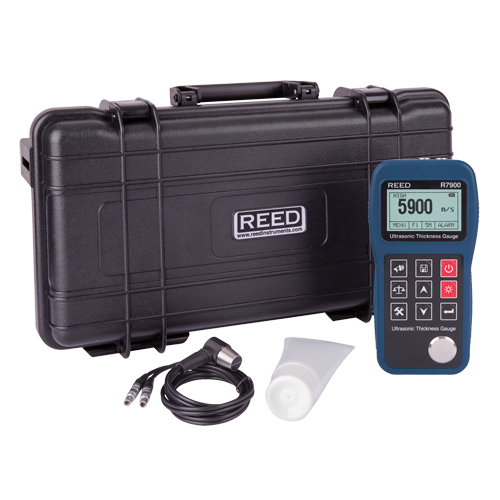

Ultrasonic Thickness Gauge, Digital Display, Ultrasound, 0.03" - 15.7" (0.65 mm - 400 mm) Range

Model: IB827

Mfr. No.: R7900

  • Ultrasonic Thickness Gauge, Digital Display, Ultrasound, 0.03" - 15.7" (0.65 mm - 400 mm) Range Fastek

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,095.00 / Each

1 In Stock - Call For Stock Location

Carrying Cases, Soft Case Fastek

Reed Instruments

Carrying Cases, Soft Case

  • Outside Depth: 2"
  • Outside Length: 7"
  • Outside Width: 3"

Model: HN413

Mfr. No.: CA-52A

$30.00 / Each

10 In Stock - Call For Stock Location

Replacement Probe for REED R7900 Fastek

Reed Instruments

Replacement Probe for REED R7900

Model: IB887

Mfr. No.: R7900-PROBE

$255.00 / Each

0 In Stock - Call For Stock Location

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

R8888 Deluxe Carrying Case, Hard Case Fastek

Reed Instruments

R8888 Deluxe Carrying Case, Hard Case

  • Outside Dimensions: 13 x 12 x 5.8" (330 x 310 x 148mm)

Model: IB742

Mfr. No.: R8888

$99.00 / Each

2 In Stock - Call For Stock Location

Display

Digital

Measuring Mode

Ultrasound

Thickness Range

0.03" - 15.7" (0.65 mm - 400 mm)

Sound Velocity Range

1000 to 9999 m/s (0.039 to 0.394 in/µs)

Measurement Speed

4 per second for a single point measurement

Memory

5 files, up to 100 values for each file (total of 500 logs)

Power Supply

2 x 1.5V AA batteries

Measurement Range

1.2 to 300.0mm (steel)

Frequency

5MHz

  • Able to gauge thickness measurement without requiring access to both sides of the test piece
  • Determines sample thickness by measuring the amount of time it takes for sound to traverse from the transducer through the material to the back end of a part and back
  • Calculates the data based on the speed of the sound through the tested sample
  • Capable of performing measurements on a wide range of material including metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
  • Zero function and sound velocity calibration
  • Two-point calibration
  • Coupling status indicator
  • Can be easily deployed, does not require laboratory conditions
  • Includes ultrasonic couplant gel, probe, hard carrying case and batteries
