Reelcraft

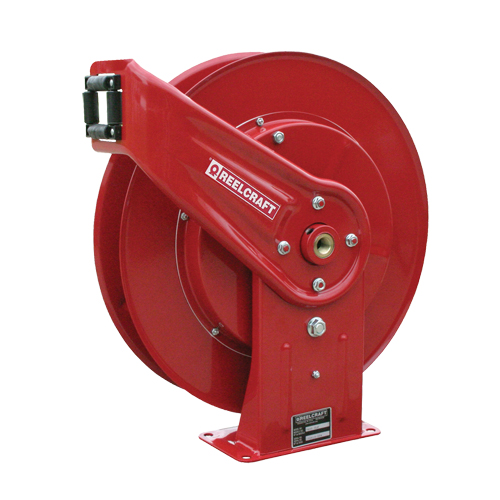

General Hose Reel, Single Hose, 7" W x 19-3/4" D x 20-1/4" H

Model: UAD501

Mfr. No.: 7600 OLP

  • General Hose Reel, Single Hose, 7" W x 19-3/4" D x 20-1/4" H Fastek

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$869.00 / Each

0 In Stock - Call For Stock Location

Ships May 2026

Shipping times are based on information available at the time of order and are subject to change.

Hose Capacity

Single Hose

Reel Height

20-1/4"

Reel Width

7"

Reel Depth

19-3/4"

Fits Hose Dimensions

3/8" Dia. x 70' L

Hose Length Capacity

50'

Inlet

1/2" NPT(F)

Reel Outlet

1/2" NPT(F)

Weight

40 lbs

Colour

Red

Hose Inner Diameter

3/8"

Pressure

500 PSI

Max. Temperature

150 °F

Drive Type

Spring Driven

  • The full-flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
  • Declutching arbor virtually eliminates possibility of spring damage due to reverse winding
  • Individually powder-coated components offer the maximum protection from premature corrosion
  • Hose sold separately
