Southworth

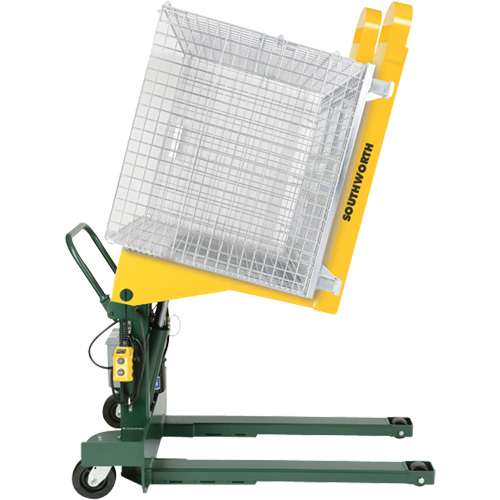

Portable Hydraulic E-Z Reach Tilter, 85° Tilt, 2000 lbs. Capacity, 40" L x 24-1/2" W

Model: LT588

Mfr. No.: 4432536

  • Portable Hydraulic E-Z Reach Tilter, 85° Tilt, 2000 lbs. Capacity, 40" L x 24-1/2" W Fastek

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$13,031.37 / Each

0 In Stock - Call For Stock Location

Ships in 5-8 weeks

Shipping times are based on information available at the time of order and are subject to change.

Manufacturer's Warranty

  • 2 Years

Dimensions

40" L x 24-1/2" W

Fork Length

40"

Capacity

2000 lbs.

Degree Of Tilt

85°

Raised Height

37"

Lowered Height

3.5"

Handle Height

31"

Platform Dimensions

40" L x 24-1/2" W

Tilt Degree

85

Overall Height

31"

Overall Length

51"

Overall Width

34"

Outside Fork Clearance

24.5"

Inside Fork Clearance

11.5"

Front Roller Size

3.25"

Country Of Origin

United States

  • Collapsible pushbar
  • 1/2 HP TENV electric motor and 0.4 GPM hydraulic pump
  • NEMA 4 hand held pushbutton includes a 10ft straight cord
  • Parts & labor are warrantied for 2 years
  • Green self-priming machinery enamel with tilting platform painted yellow
  • Control Voltage: 115/1/60
  • Floor Lock Included: Yes
  • Primary Voltage: 115/1/60
  • Rear Caster Size: 6"
  • Tilt Time Down (seconds): 15
  • Tilt Time Up (seconds): 37
  • Weight: 800 lbs.

Wesco

Ergonomic Pallet Tilter, 90° Tilt, 2200 lbs. Capacity, 51-2/3" L x 21-1/2" W x 44-1/4" H

  • Fork Length: 31"
  • Raised Height: 37"
  • Lowered Height: 3.25"
  • Capacity: 2200lbs
  • Frame Material: Steel
  • Frame Width: 21 1/2"
  • Handle Height: 44.25"
  • Platform Dimensions: 31" L x 21-1/2" W
  • Weight: 393 lbs.
  • Load center: Minimum 7 1/2", maximum 15 1/2"
  • Manufacturer's Warranty: 1 Year

Model: MK824

Mfr. No.: 272950

$6,384.51 / Each

0 In Stock - Call For Stock Location

Ships in 5-8 weeks

Shipping times are based on information available at the time of order and are subject to change.
