Vibrasystems

Anti-Vibration Cupmounts

Model: UD188

Mfr. No.: VSCM-4

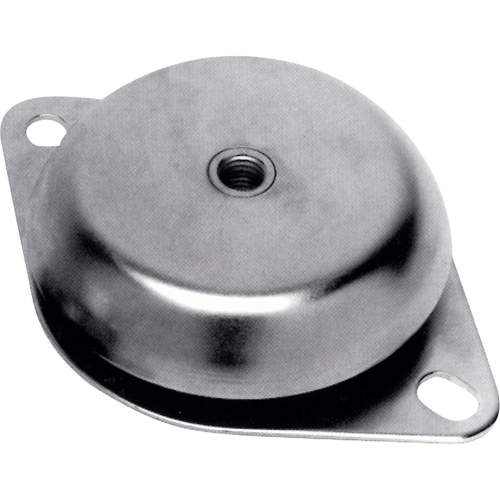

  • Anti-Vibration Cupmounts Fastek

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$183.00 / Each

0 In Stock - Call For Stock Location

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

Overall Length

7-11/16"

Overall Height

1-11/16"

Maximum Load In Lbs. Non-Impact Machinery

2600

Maximum Load In Lbs. Impact Machinery

1700

Mount Dimensions In Inches A

7.6875

Mount Dimensions In Inches B

4

Mount Dimensions In Inches C

6.375

Mount Dimensions In Inches D

5.1875

Mount Dimensions In Inches H

1.6875

Mount Dimensions In Inches T

40671

  • High vibration dampening characteristics
  • Fail-safe, rugged interlocking metal and neoprene construction provides exceptional performance against shear and compression forces and flexible vertically and stable horizontally
  • Metal cupmount component is cold-rolled steel coupled with an elastomer-in-compression design
  • High-grade neoprene elastomer provides resistance to oil and ozone
  • Each side flange has through holes allowing for effective attachment to supporting equipment structure
